PPC-315W-PB50A
Giá: 95,600,000 VNĐ
Thông tin sản phẩm
Mã hàng: PPC-315W-PB50A
Bảo hành: 24 tháng
Hãng sản xuất: Advantech
Xuất xứ: Taiwan
Bảo hành: 24 tháng
Hãng sản xuất: Advantech
Xuất xứ: Taiwan
Mô tả sản phẩm
PPC-315W-PB50A: 15.6" PPC w/Intel i5-1145G7E, P-Cap
- PROFESSOR: i5-1145G7E 8M Cache, up to 4,10 GHz
- MEMORY: 8GB SO-DIMM DDR4 3200MHz
- STORAGE: 128GB 2.5 SATAIII
- ADAPTER: Power adapter 100-240V 150W 19V
- AC POWER CORD
- OS: Windows 10/11, Linux (trial version)
ardware
Certification
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
Hardware
CPU
Intel® Core™ i5-1145G7E 1.5GHz Quad core
Hardware
Ethernet
(02)Intel® i219-LM GbE, Intel® i225-LM GbE
Hardware
Expansion
1 x M.2 E Key 2230
Hardware
Hardware Security
TPM 2.0
Hardware

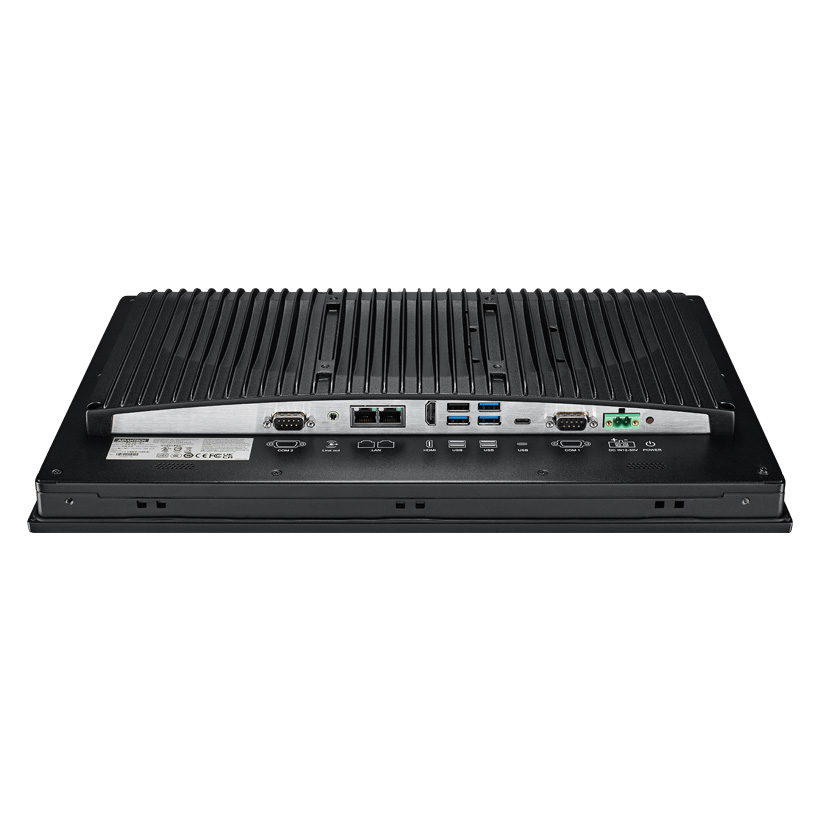

I/O
1 x RS-232, 1 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x Type C, 1 x HDMI, 1 x Line Out
Hardware
LAN
1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
Hardware
Memory + SSD
2 x DDR4 SO-DIMM Slot (8GB) + STORAGE: 128GB 2.5 SATAIII
Hardware
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Hardware
Power Consumption
70 W @ 19 VDC
Hardware
Power Input
12~30 VDC
LCD Display
Backlight Life (hrs)
50,000
LCD Display
Display Size
15.6"
LCD Display
Luminance (cd/m2)
450
LCD Display
Max. Resolution
1920 x 1080
LCD Display
Viewing Angle (H/V°)
160/170
I/O Interface
Displays
1 x HDMI
I/O Interface
Power Connector
1 x 2-Pin Terminal Block
I/O Interface
Serial Ports
1 x RS-232, 1 x RS-232/422/485
Environment
Ingress Protection
Front Panel IP66
Environment
Operating Temperature
-10~50 °C (14~122 °F)
Environment
Relative Humidity
95% RH (non-condensing)
Environment
Storage Temperature
-20~60 °C (-4~140 °F)
Environment
Vibration Protection
2 Grms, random
Touchscreen
Touch Type
PCAP
Mechanical
Dimension (W x H x D)
420 x 269 x 62 mm
Mechanical
Enclosure
Die-cast aluminum alloy
Mechanical
Mounting
Stand, Wall, VESA, Panel
Mechanical
Weight (Net)
4.8 kg ( 10.67 lb)
USB Vision
Connector
3 x USB 3.2 Type A, 1 x USB 2.0 Type A, 1 x Type C
PPC-315W TGL
15.6" Fanless Panel PC with Intel® Core™ i7/i5/i3 processor
- Industrial-grade 15.6" FHD LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive contr
- High-performance, fanless 11th generation Intel® Core™ i processor
- Dual channel memory slots, max 64G
- Compact, fanless design with aluminum alloy enclosure
- IP66-rated front panel
- Supports dual displays (1 x external HDMI)
- 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
- Support TPM2.0 hardware security
